China Overshot Assembly

China Overshot Assembly

Description:

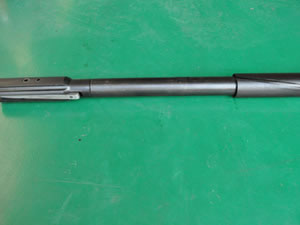

The China overshot assembly is mainly used for pulling up inner tubes inside core tubes. And we offer various overshot assemblies for clients all over the world, such as S56,S59, S59B, S75, S75B, S75-SF,S95, S95A , CBH, CNH and CNH(F) CSH overshot assembly.

It is mainly made up of salvage hook, salvage frame (rack) and heavy hammer.

We will pack the overshot assembly in accordance with customers' requirements. And for those to be exported, they will be packed by export-standard plywood boxes.

As a professional manufacturer of China overshot assembly in China, Wuxi Drlling Tools Factory still provide customers worldwide with hoisting plug, foot clamp, circle wrench, diamond circle wrench, etc. All of our products have passed the certification of ISO9001: 2000 and API 5DP. With high quality and competitive price, our products have been well received by customers from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. If you're interested in our China overshot assembly, please contact us freely.

Technical Parameters:

Model Overshot assembly Weight/set
Length(mm) Outer diameter(mm) kg
S56 1580 40 25
S59 1580 42 25
S59B 1580 42 25
S75 1470 50 28
S75B 1460 50 28
S75-SF 1460 50 28
S95 1600 70 32
S95A 1600 50 32
CBH 1580 40 25
CNH 1470 50 25
CNH(F) 1470 50 25
CSH 1650 80 38
